Linhai UTV 1100 Diesel 4x4
Linhai UTV 1100 Diesel 4x4

UTV 1100 Diesel 4x4

  • Kubota D1105 Diesel Engine (Japan)
  • Seating for 3
  • Electric Power Steering (EPS)

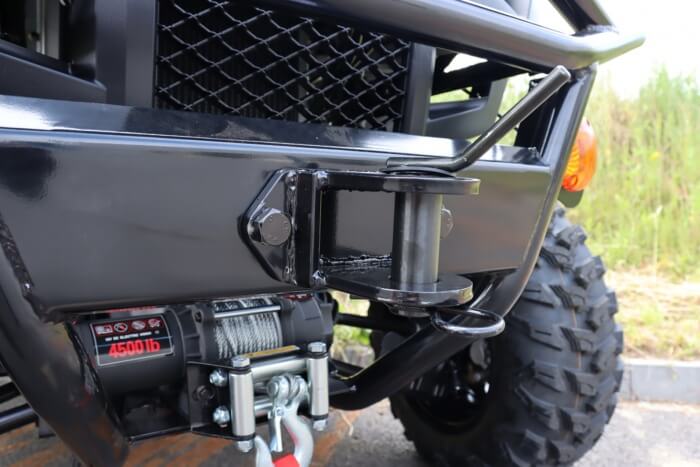

  • 4500 lbs Electric winch

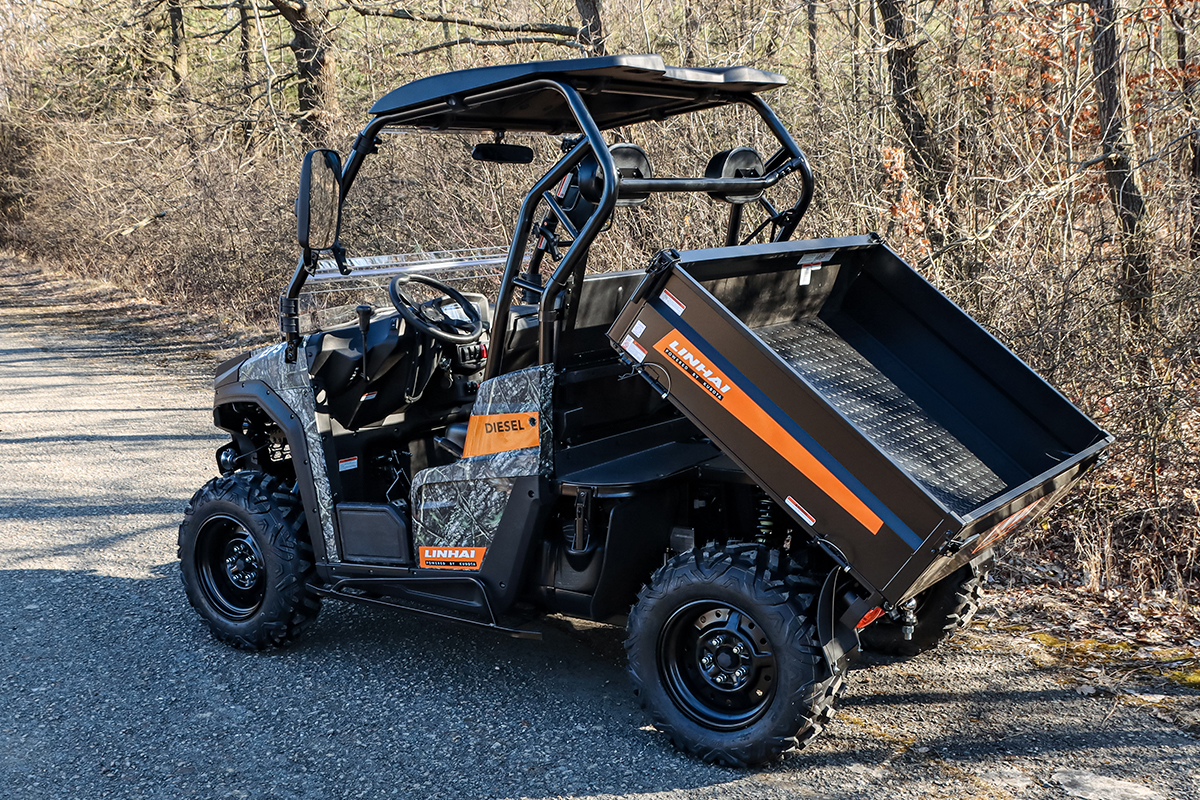

  • Gas-assisted Cargo Box
  • LED daytime running lights
  • ROPS certified Roll Cage
  • Rigid full-length Roof
  • Full Windshield
  • Front bumper
  • Trailer Hitch
Select
color

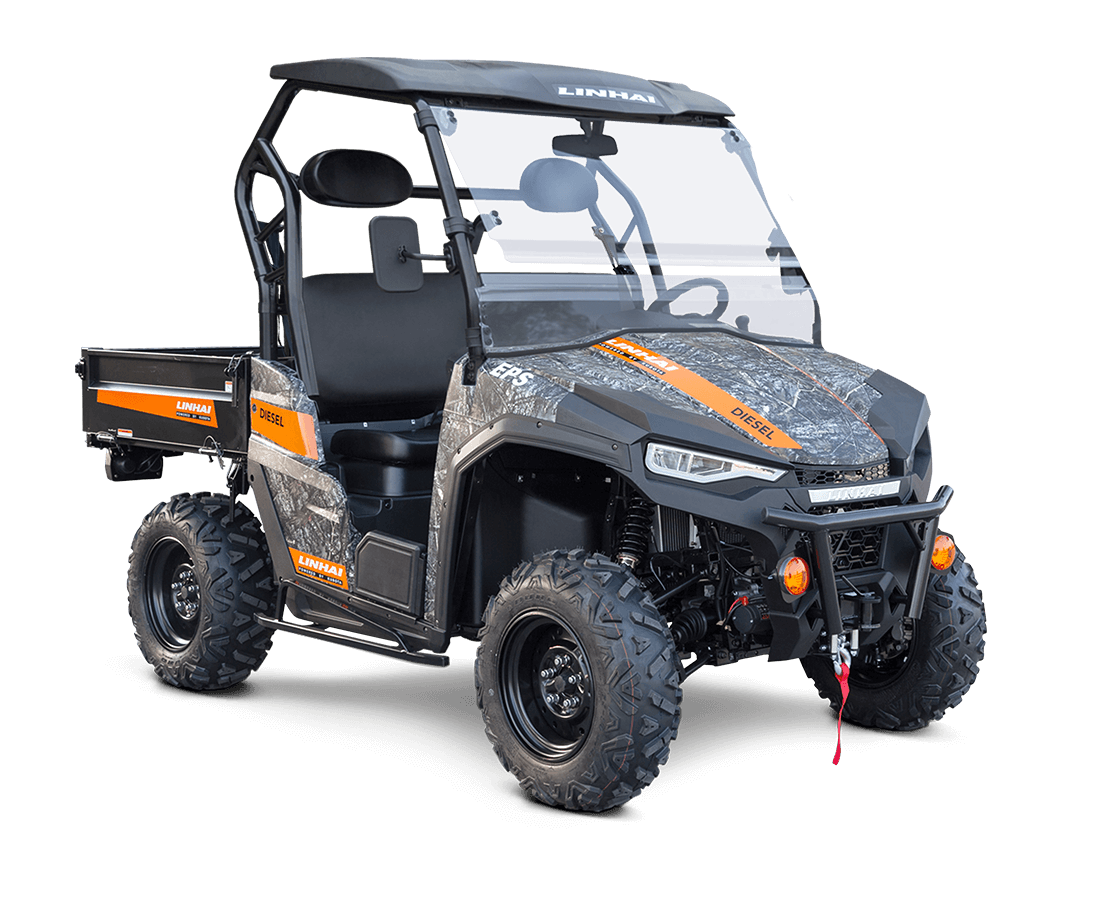

Camouflage

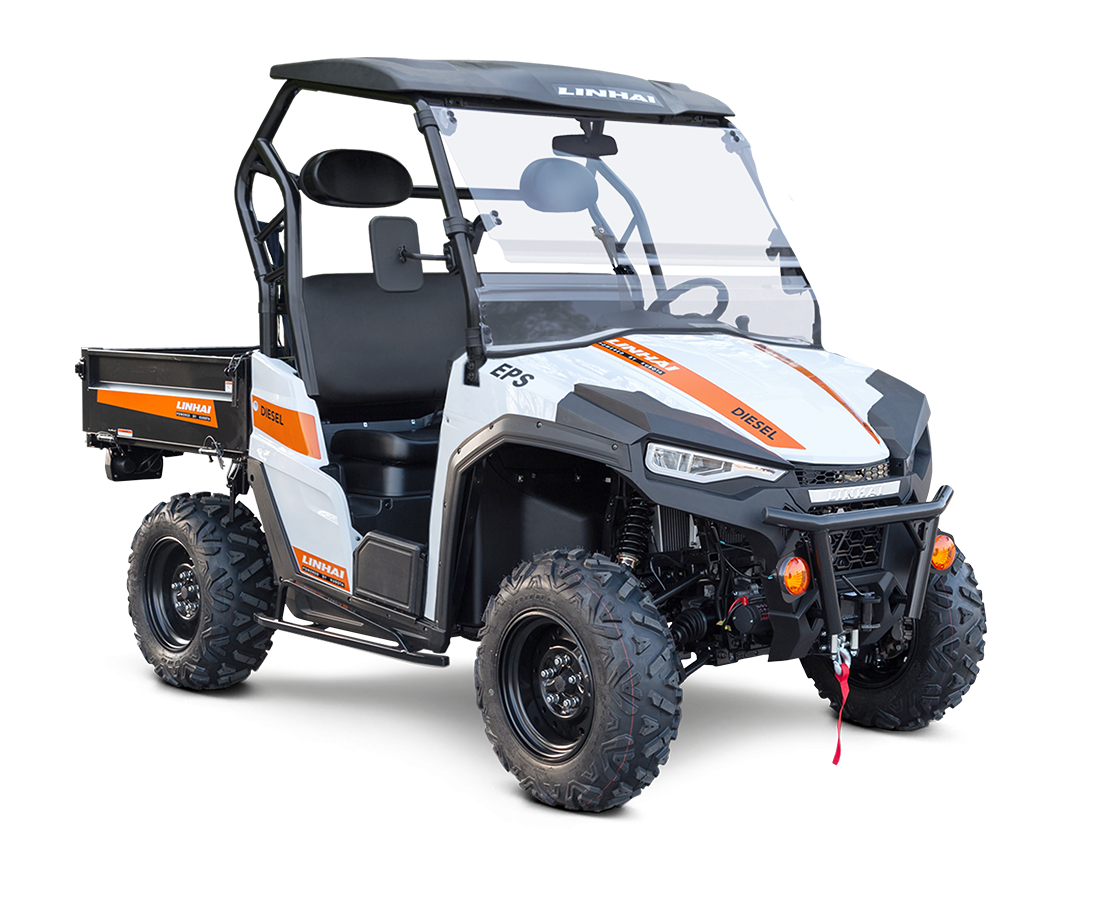

White

Specifications

Engine

Model: Kubota Diesel D1105-E3B, Made in Japan
Type: 4-stroke, liquid-cooled, in-line three-cylinder diesel
Displacement: 1124 cc
Bore x stroke: Ø 78 x 78,4 mm
Compression ratio: 24 : 1
Power: 24.8 HP
Torque: 72 Nm @ 3000 / min
Cooling system: liquid cooling + electric fan

Drive system

Driveline: switchable 2x4 / 4x4
Transmission: automatic, CVTech, L / H / N / R with reverse + engine brake
Front differential lock: electric
Rear differential lock: electric (L7e)

Chassis

Front suspension: independent (IRS), double A-arms
Rear suspension: independent (IRS), double A-arms
Front suspension: hydraulic shock absorbers with adjustable spring preload
Rear suspension: hydraulic shock absorbers with adjustable spring preload
Brake system: hydraulic discs
Front tires: AT26 x 9 - 14
Rear tires: AT26 x 11 - 14

Dimensions and weights

Overall length: 3018 mm
Overall width: 1520 mm
Overall height: 1905 mm
Seat height:  915 mm
Ground clearance::  240 mm
Wheelbase: 1930 mm
Dry weight: 700 kg
Cargo box capacity: 500 kg
Cargo box dimensions: 1020 x 1470 x 400 mm
Towing capacity: 800 kg
Fuel capacity: 35 liters

INSTRUMENTS

All-digital multifunction gauge: Speedometer, tachometer, odometer, trip & hour meters, digital fuel gauge, clock
Indicators: Neutral, 4x4 drive, gear, engine overheating, engine oil, high beam, turn signals, reverse, engine warning light

Standard features

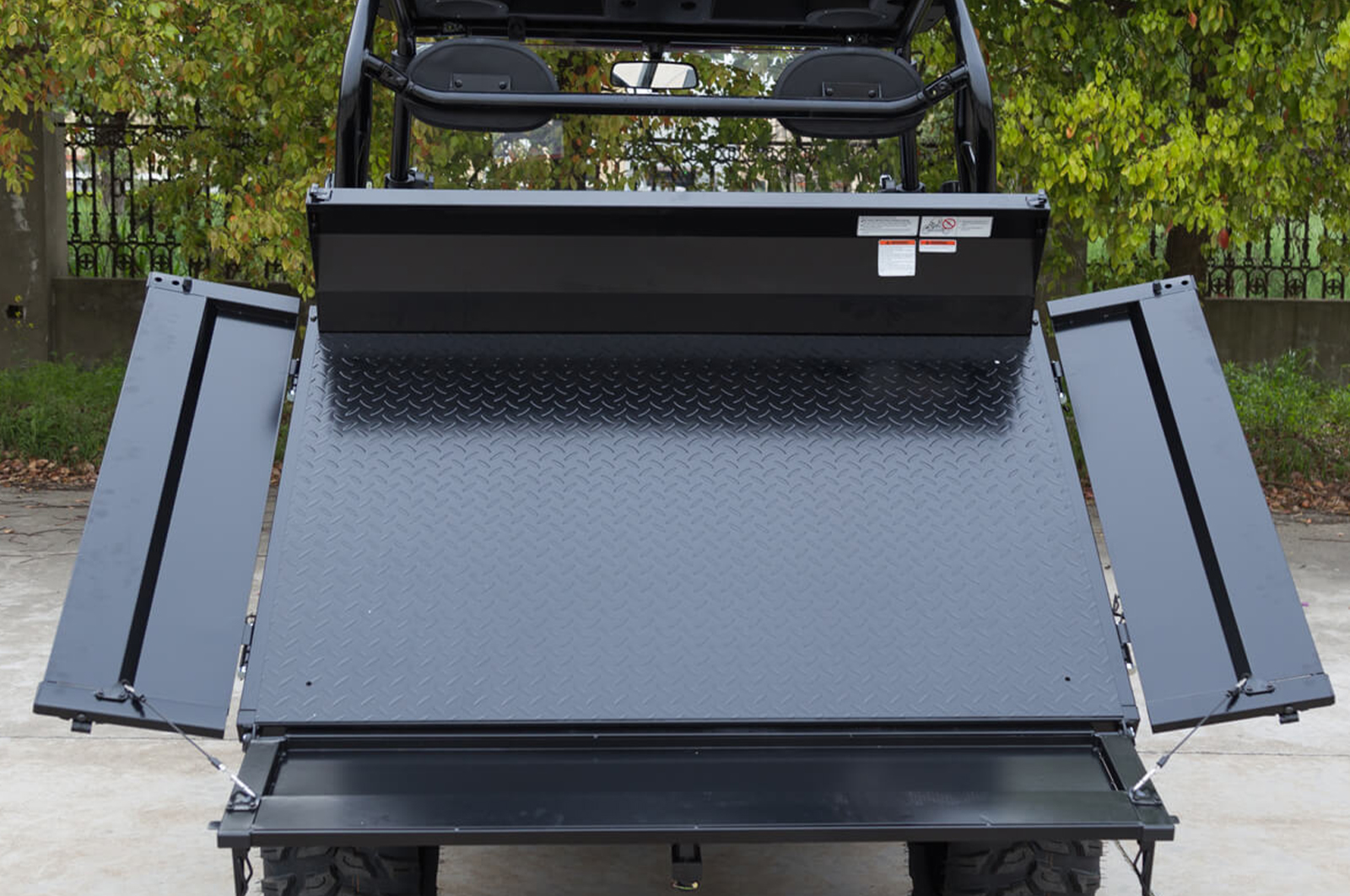

Electric power steering EPS, UV-resistant full-length roof, full windshield, front bumper, steel side frames, gas-assisted steel cargo box with removable front and sides, ROPS certified roll cage, passenger handles, head restraints, trailer hitch, 4500lbs electric winch w/ remote control, 14" wheels with 6-ply tires, dual projector headlights, LED daytime running lights, acoustic reversing alarm

Homologations

Category: T1b (Tractor)


Images and illustrations are only for information purposes and may vary depending on your market. Some vehicles may be shown with optional equipment.
Distributor reserves the right to make changes at any time, without prior notice or obligation, to specifications, equipment, accessories, colors and other product features.
